UFSK 500ECO

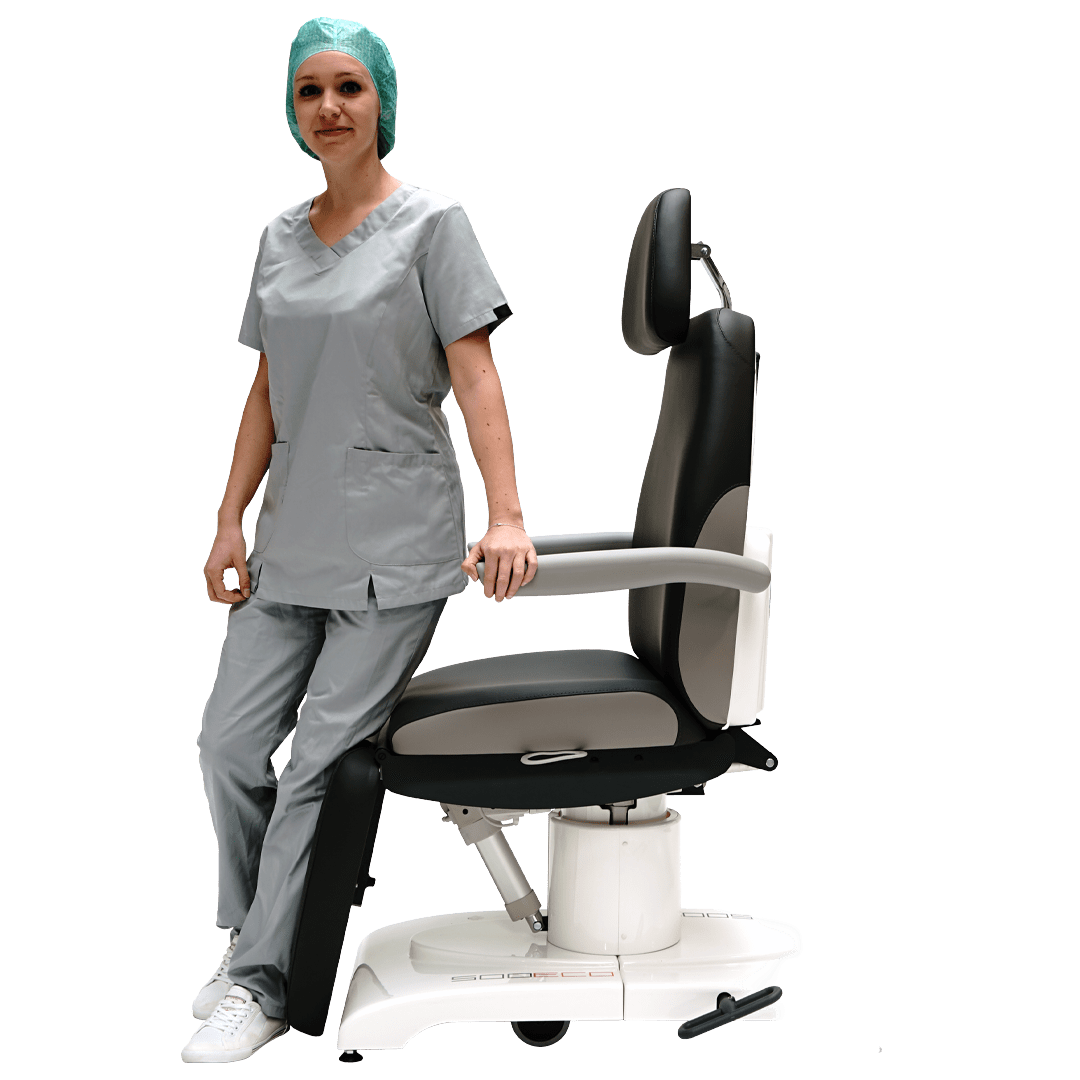

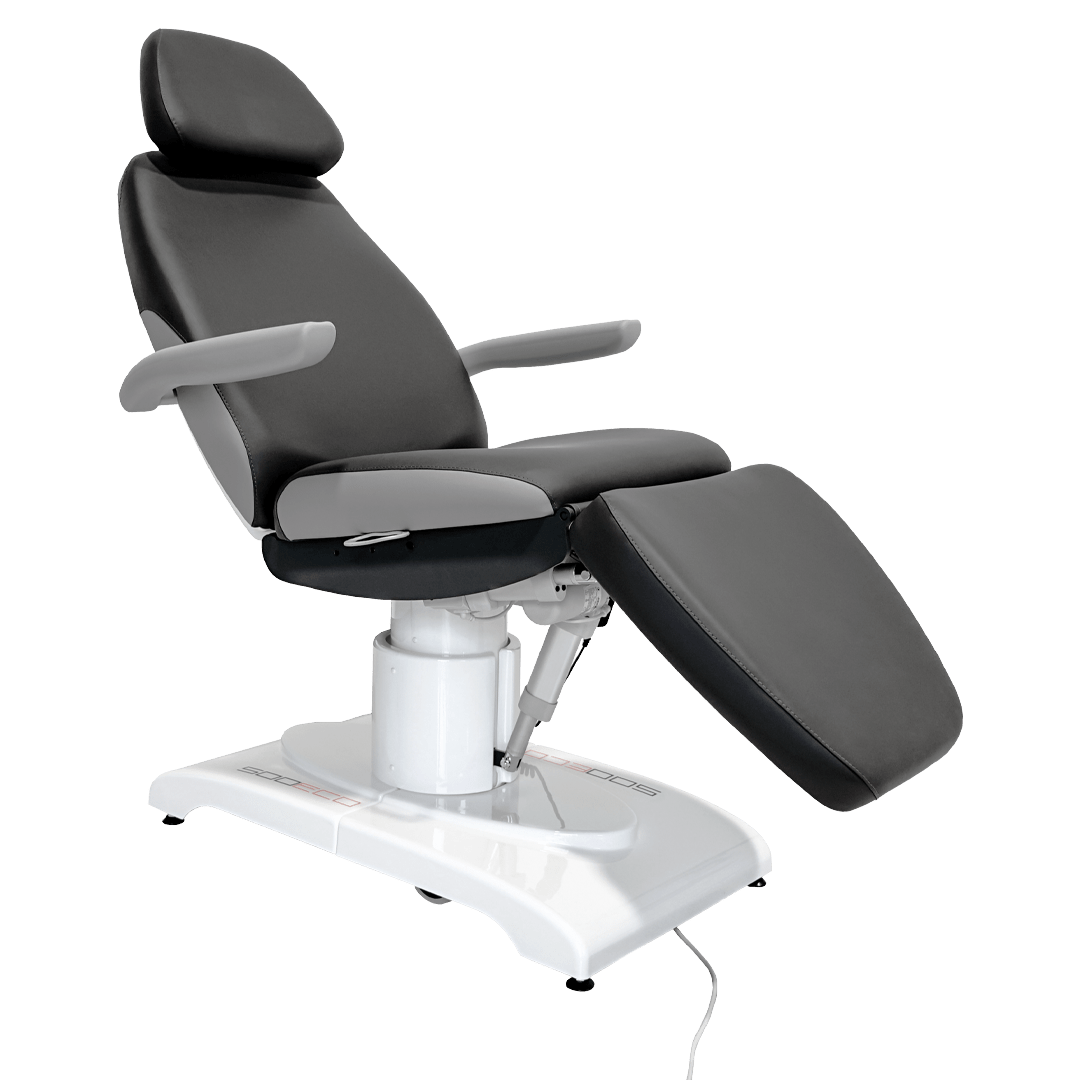

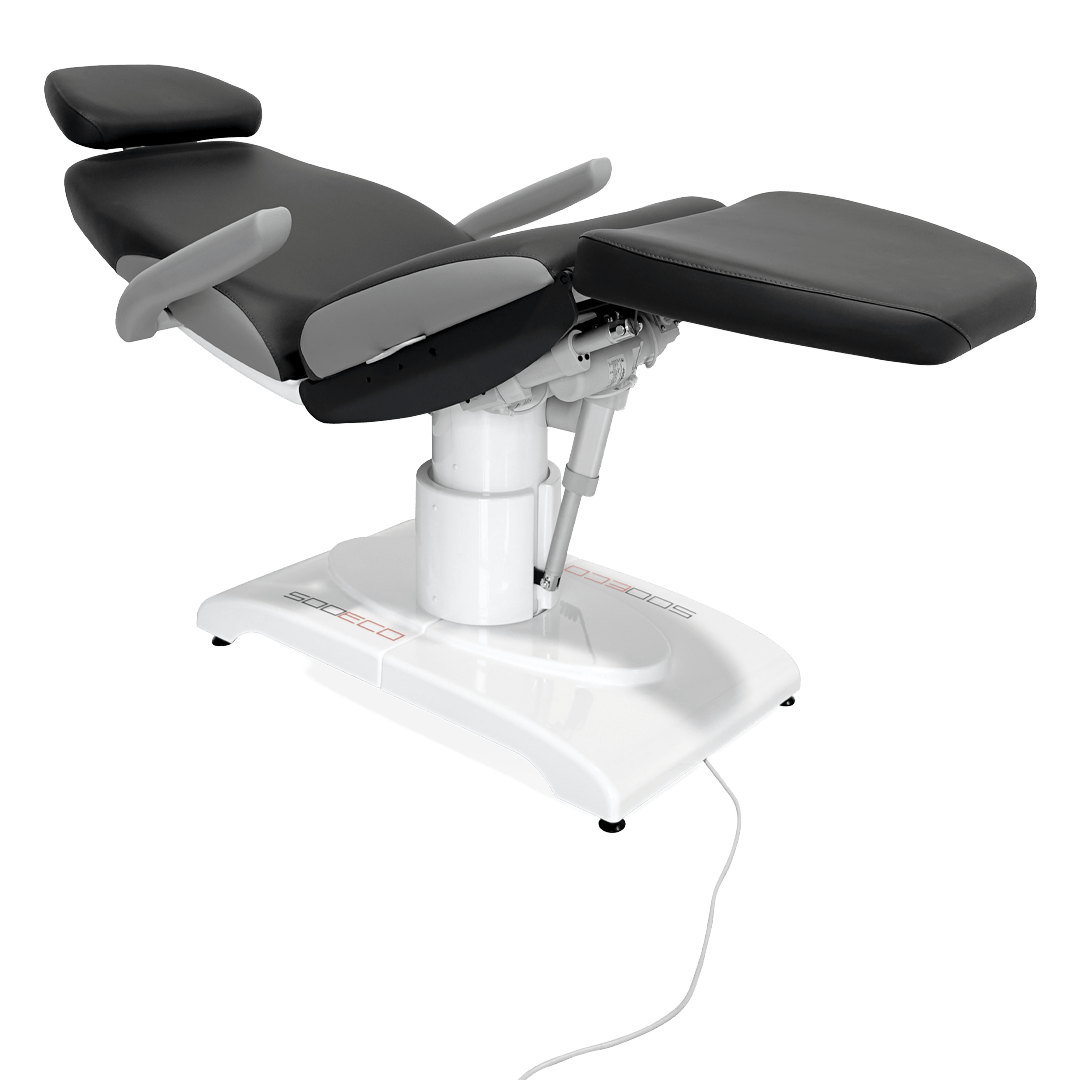

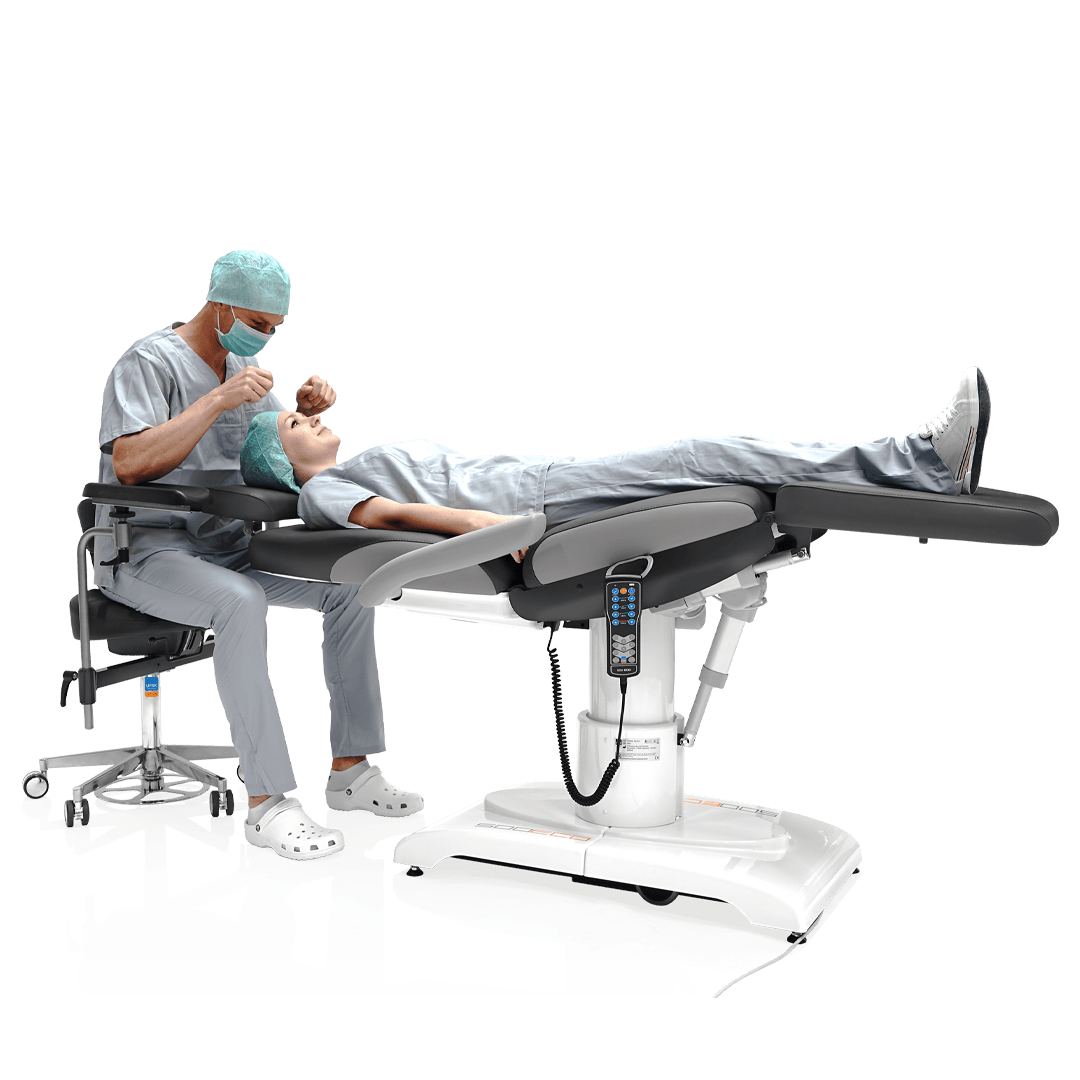

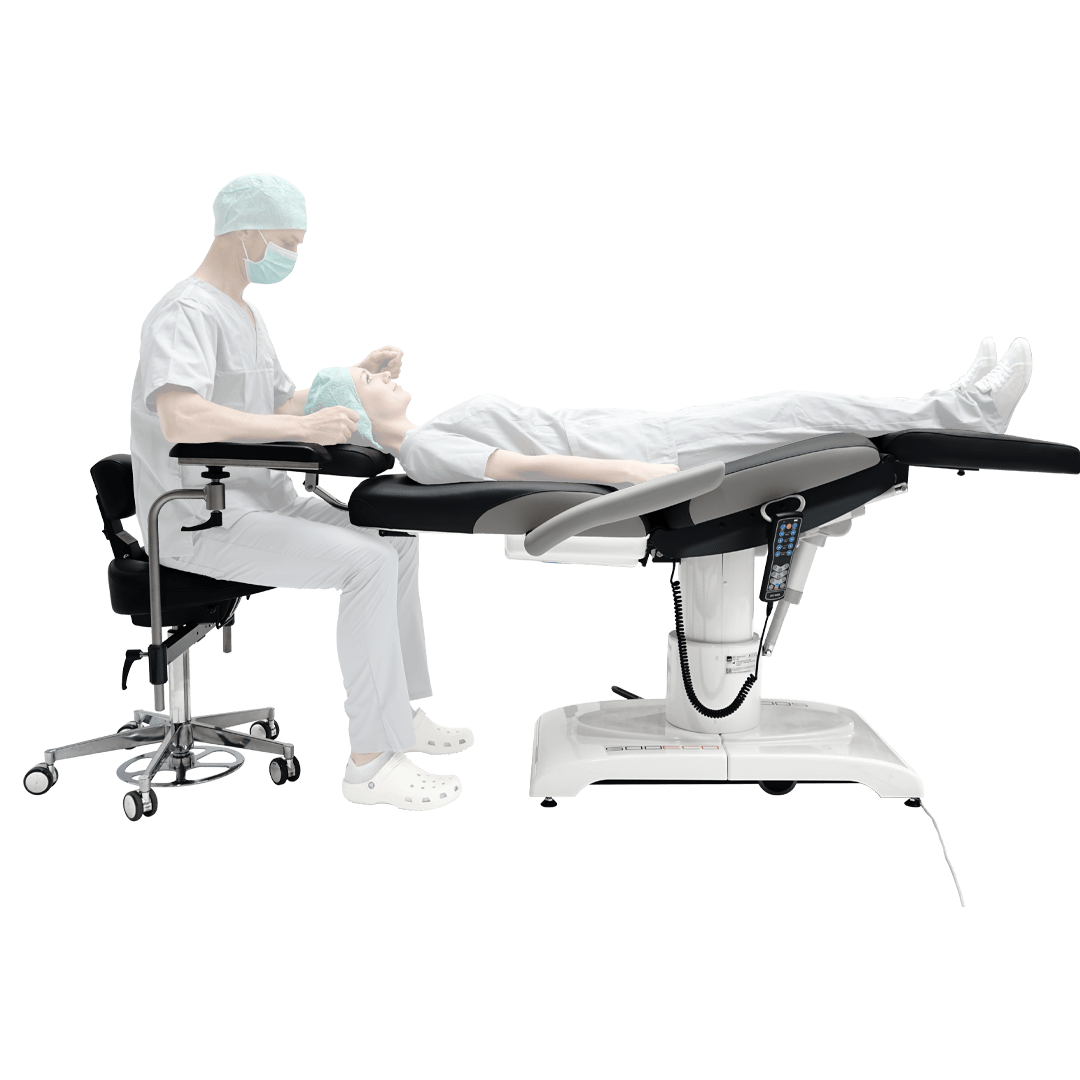

The 500 ECO treatment chair is designed for IVI treatments and combines rapid electric positioning, programmable controls and a direct mains power connection.
Description
The 500 ECO is a functional treatment chair developed for IVI procedures. Its direct power connection and integrated power supply provide powerful operation and rapid adjustment, allowing the chair to reach the operating position in approximately five to six seconds.

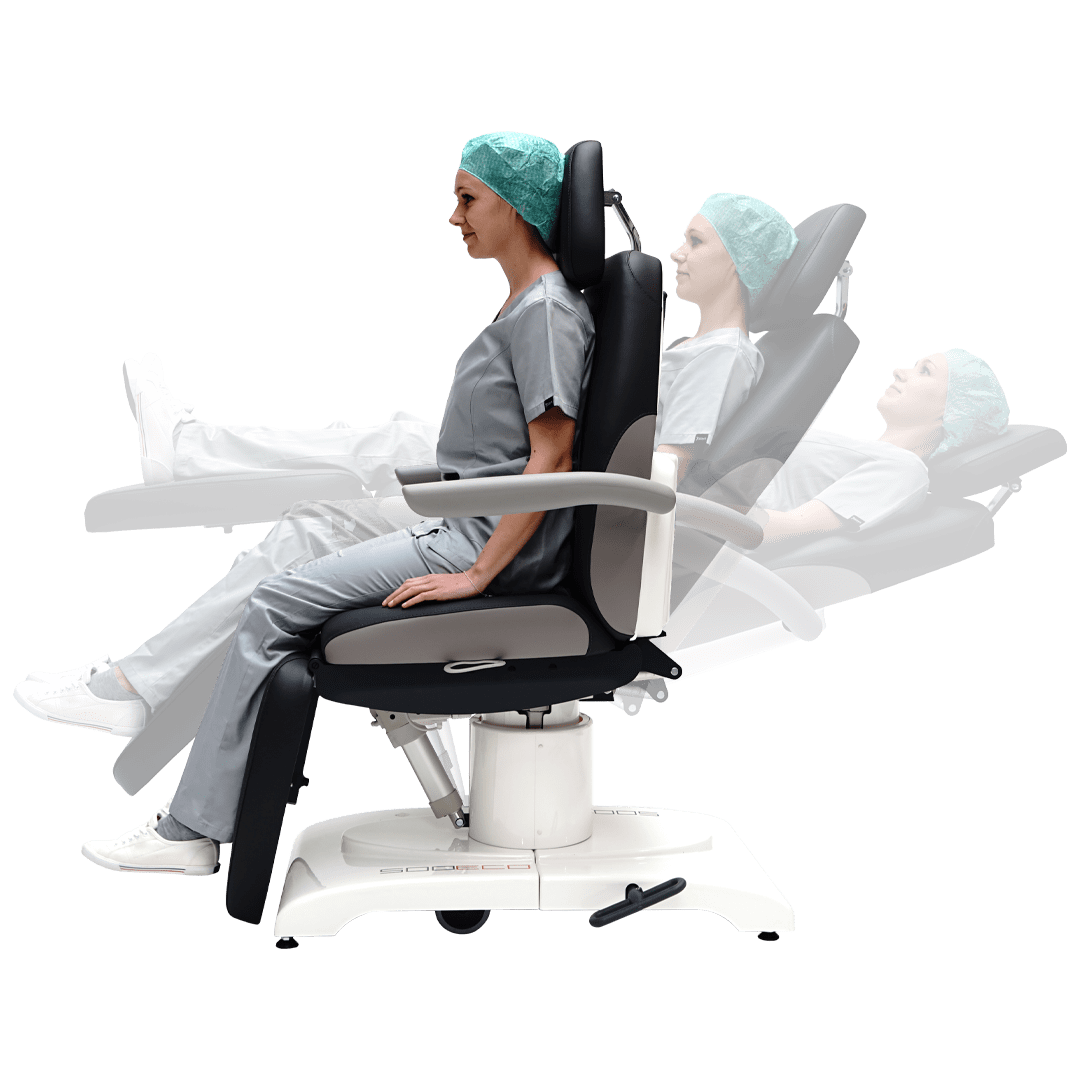

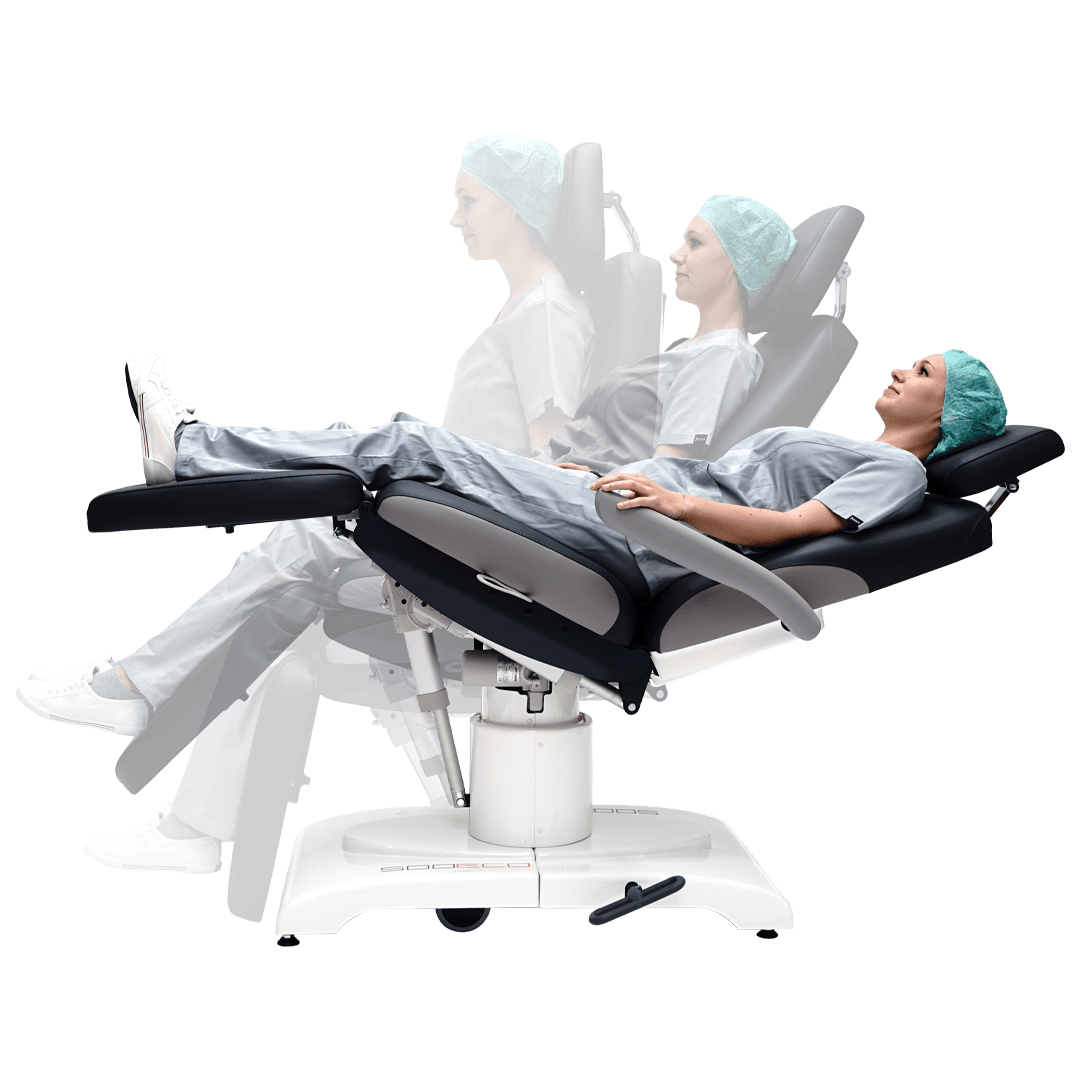

The revised back section is shorter in height and shoulder width, while the adapted head section supports improved patient positioning and ergonomic access to the surgical field.

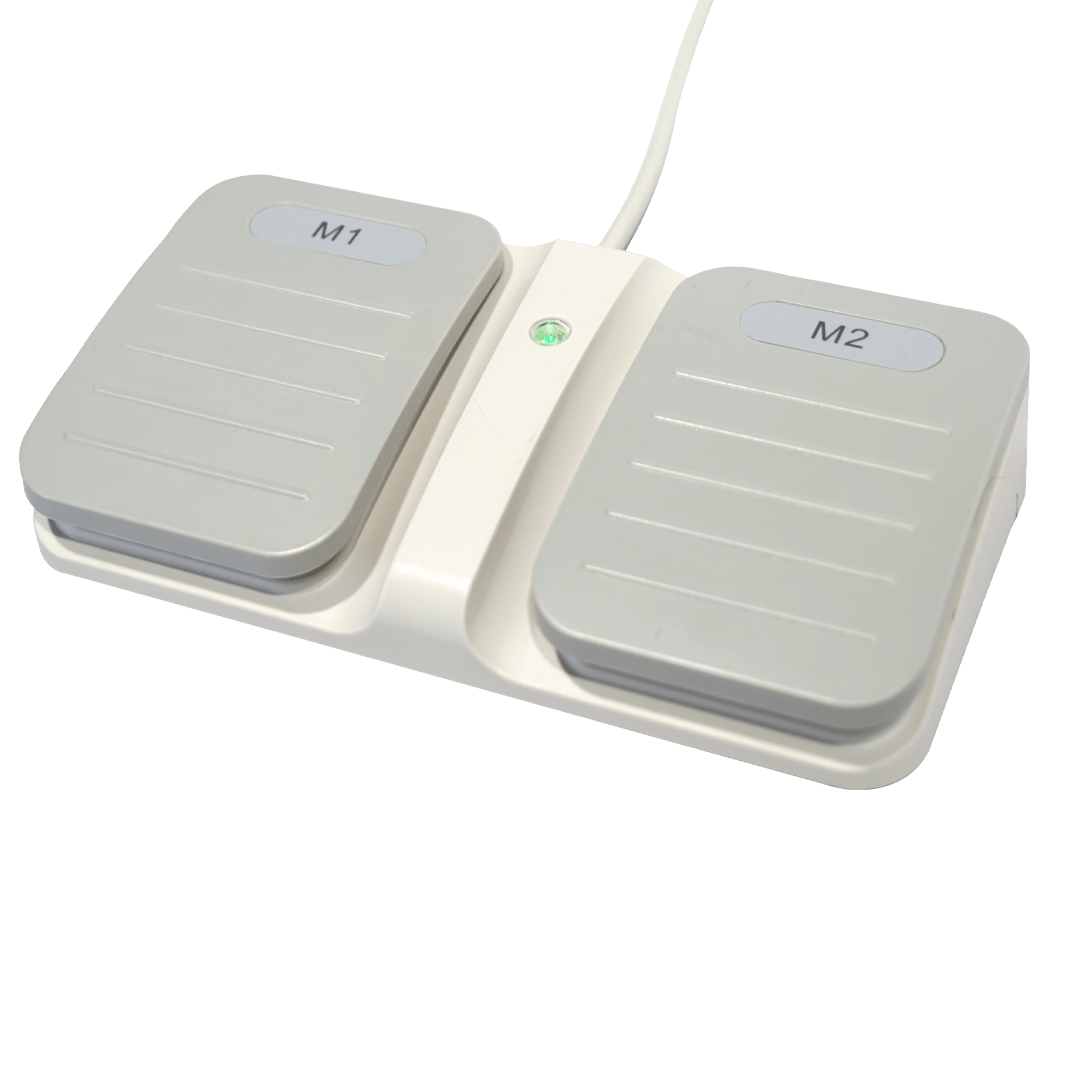

A multifunctional hand control provides eight freely programmable memory positions, a reset button, CPR function and auto-run operation. Optional foot controls are available for activating stored positions or independently adjusting the backrest, seat and overall chair height.

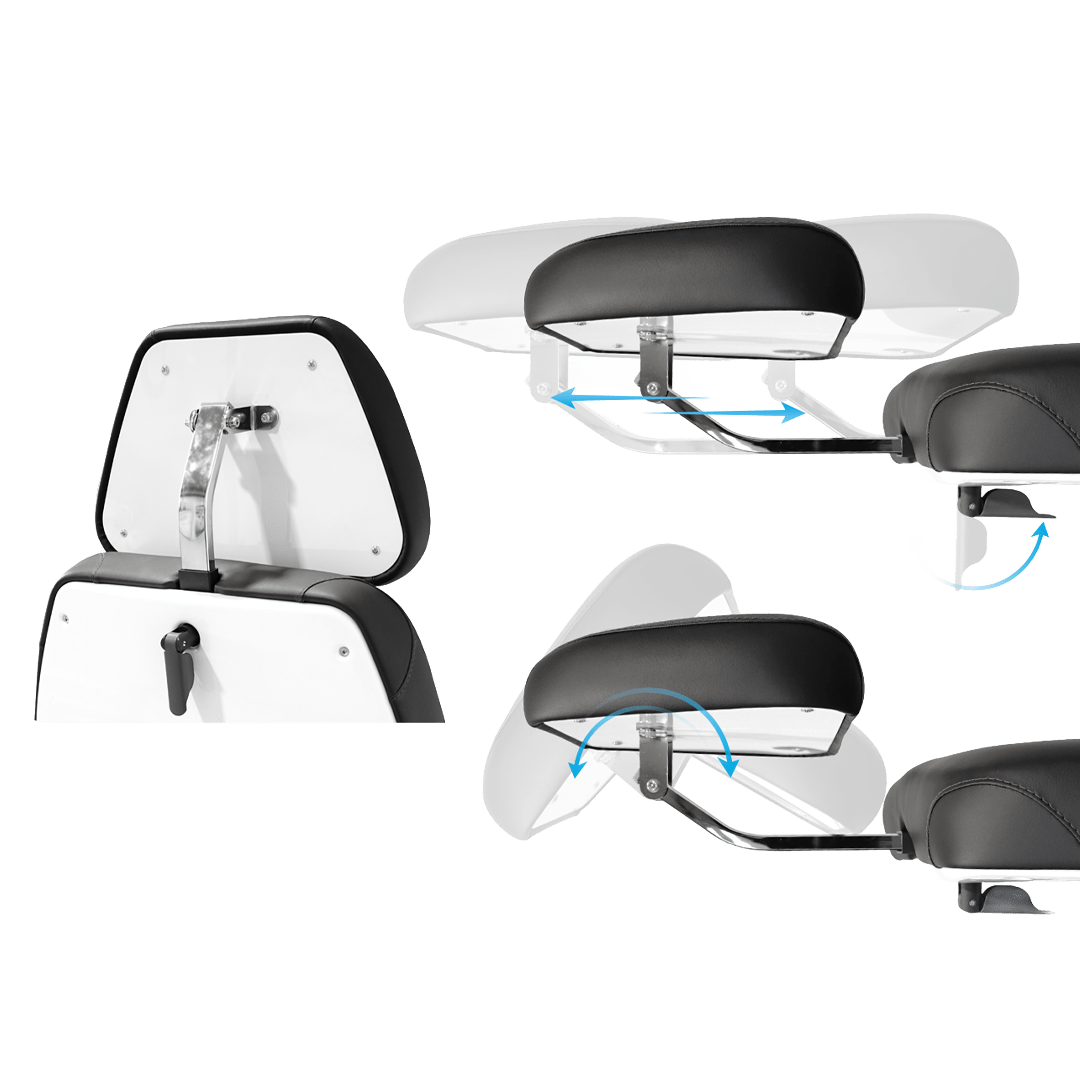

The mechanically adjustable headrest enables comfortable, fine-tuned positioning according to the patient’s individual body dimensions. A sturdy base with a mono lifting column and three extendable castors combines stability with simple manoeuvring when the chair needs to be relocated.
Reviews (0)
About brand
Develops medical equipment including treatment chairs, patient transport systems and specialised healthcare furniture designed for comfort, safety and clinical efficiency.
Technical Specifications
| Product | 500 ECO |
|---|---|
| Product class | functionalClass |
| Power supply | Direct mains power connection with integrated power supply |
| Outside chassis length | 910 mm |
| Outside width including foot pedal | 600 mm |
| Outside width including armrests | 830 mm |
| Castors | 2 × Ø 100 mm rigid castors and 1 × Ø 35 mm swivel castor |
| Support frame | Four-part support frame: head, back, seat and leg sections |
| Overall length | 1,905–2,120 mm |
| Upholstery width | 610 mm |
| Entry height | 550 mm in reset position |
| Head section | -39°/+180° | 265 × 295 mm |
| Back section | 0°/+83° | 610 × 610 mm |
| Seat section | -3°/+28° | 510 × 600 mm |
| Leg section | 0°/-75° | 490 × 530 mm |
| Armrests | 0°/+180° | 455 × 75 mm |
| Height adjustment | 615–890 mm |
| Surgeon legroom | 485–760 mm |
| CPR/flat-position height | 600 mm at the back section |
| Maximum lifting range | 275 mm |
| Electrical protection | All components according to IP54 |
| Motor protection | IPX4 motors with memorisable HAL sensors |
| Hand control | Eight programmable memory positions, auto-run and reset functions |
| Optional foot controls | Two-position foot control or multifunctional foot keypad |
| Maximum load | 240 kg |
| Weight | 82 kg |
