UFSK 500XLE

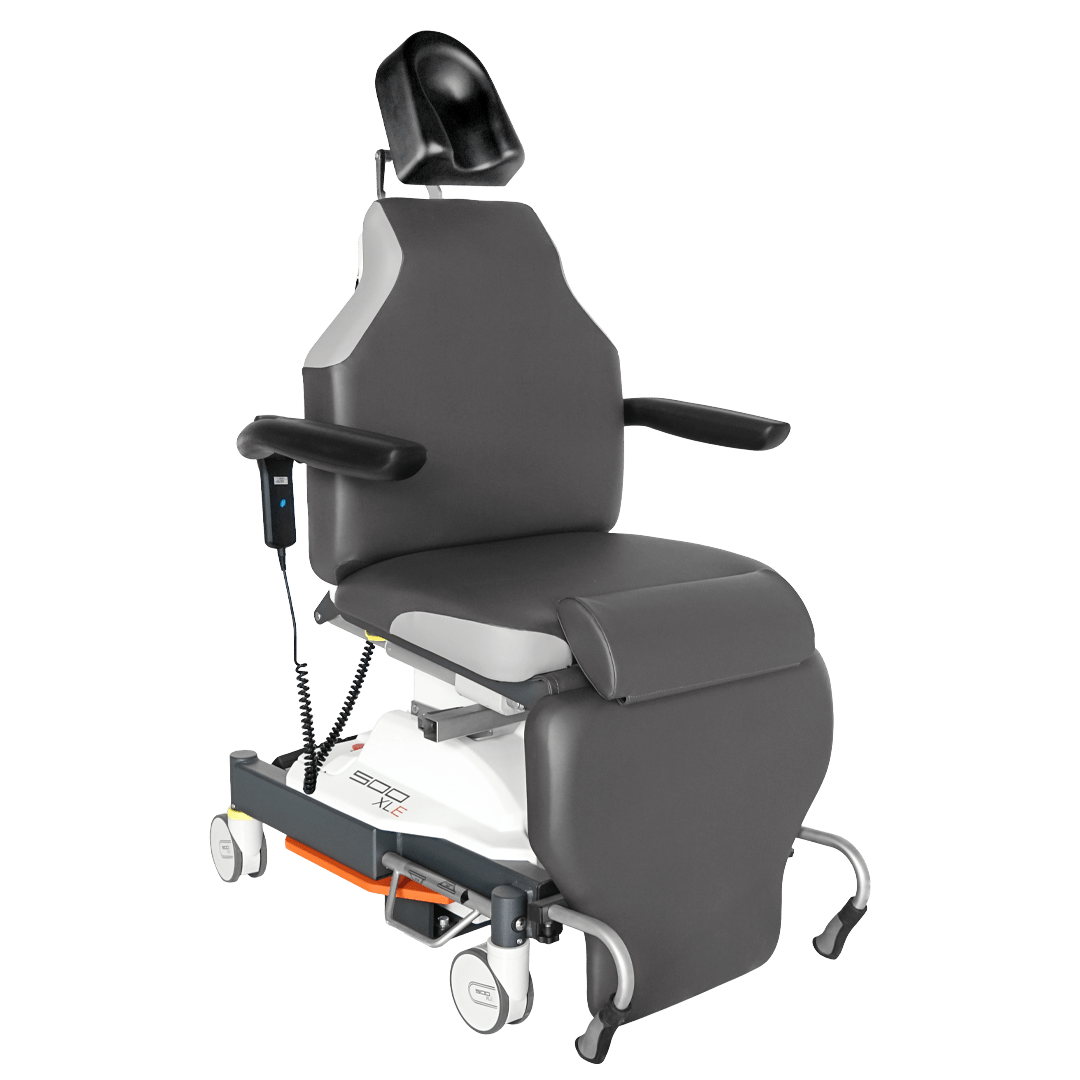

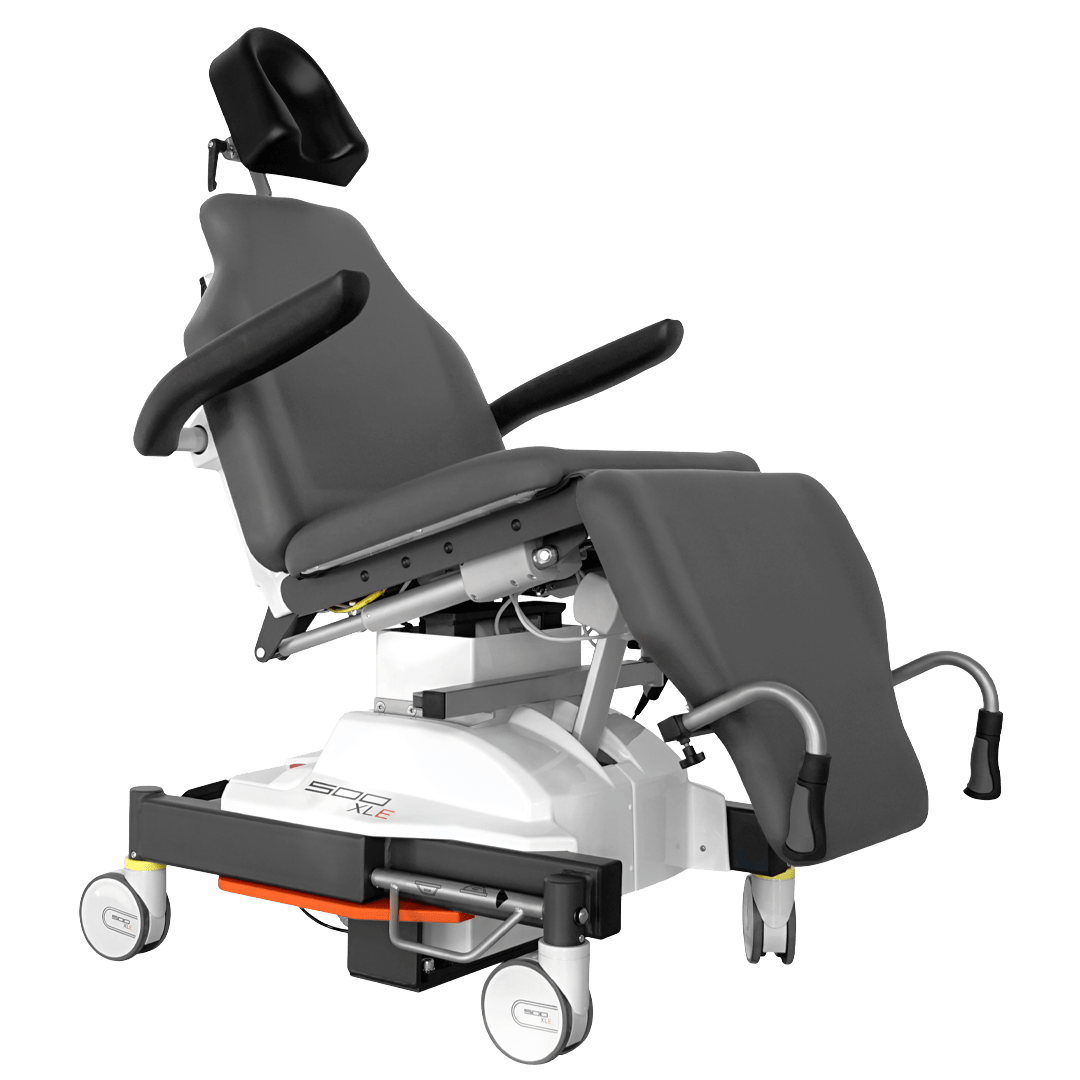

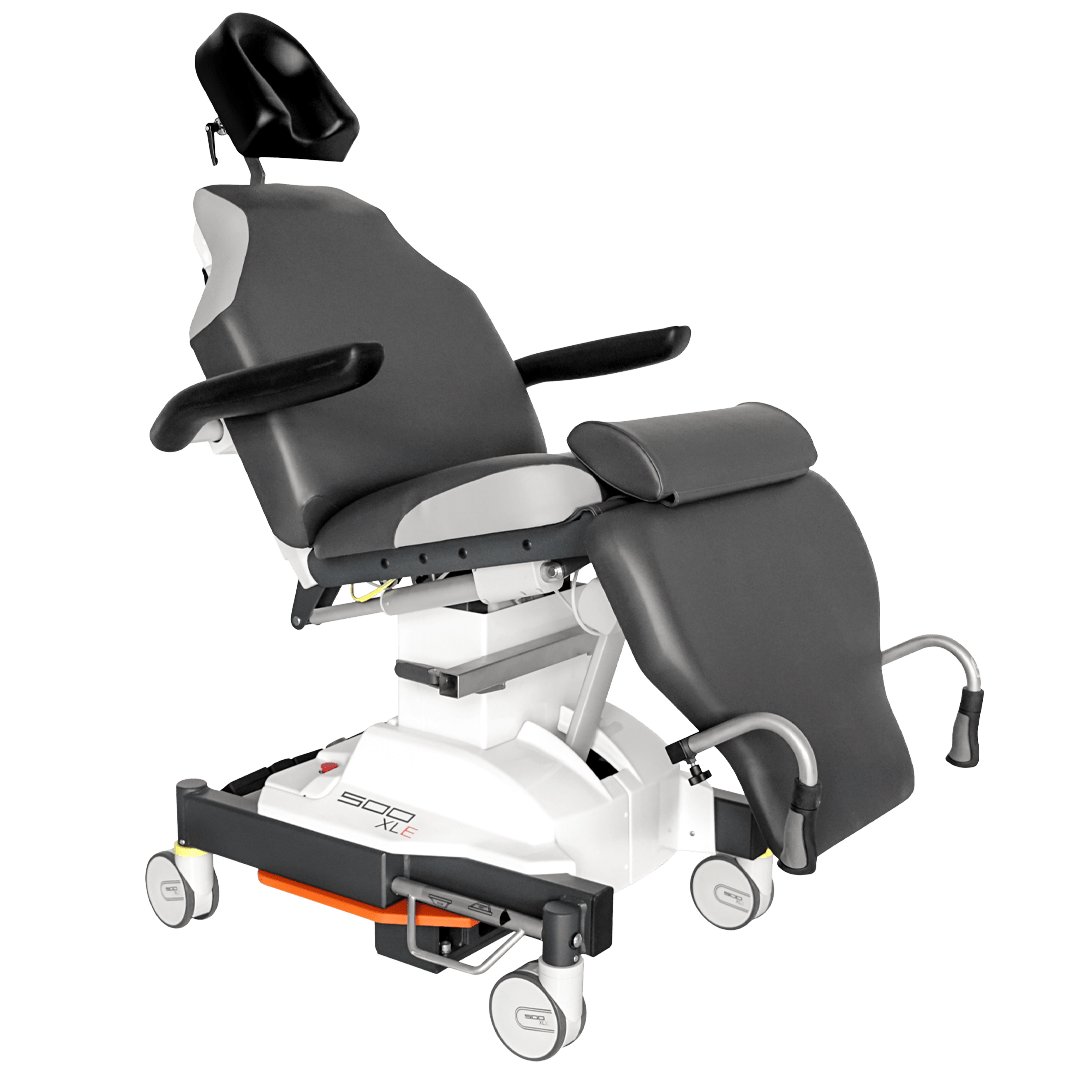

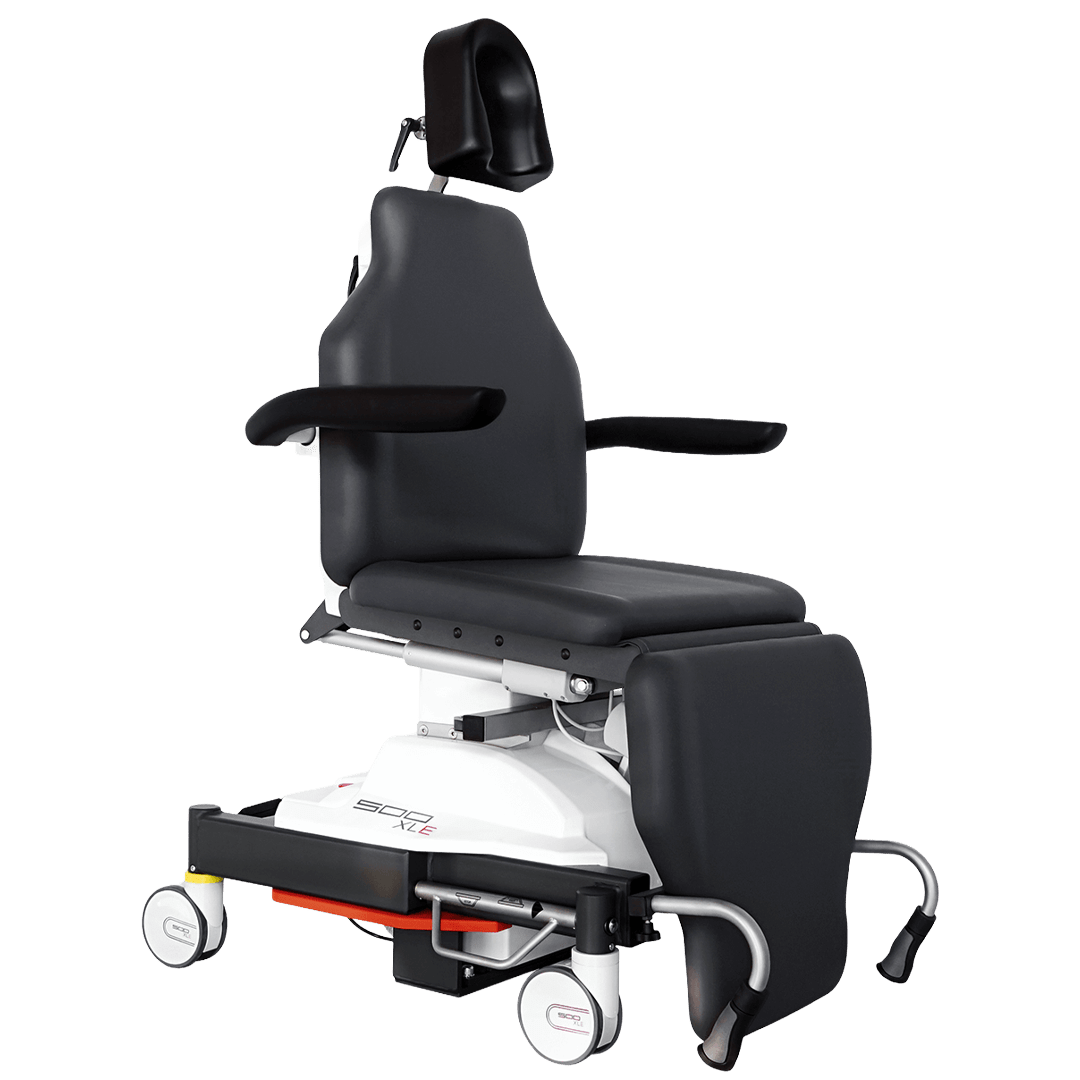

The 500 XLE treatment chair is a versatile reclining chair designed for outpatient operating rooms, offering battery-powered operation, programmable positioning and excellent manoeuvrability.
Description

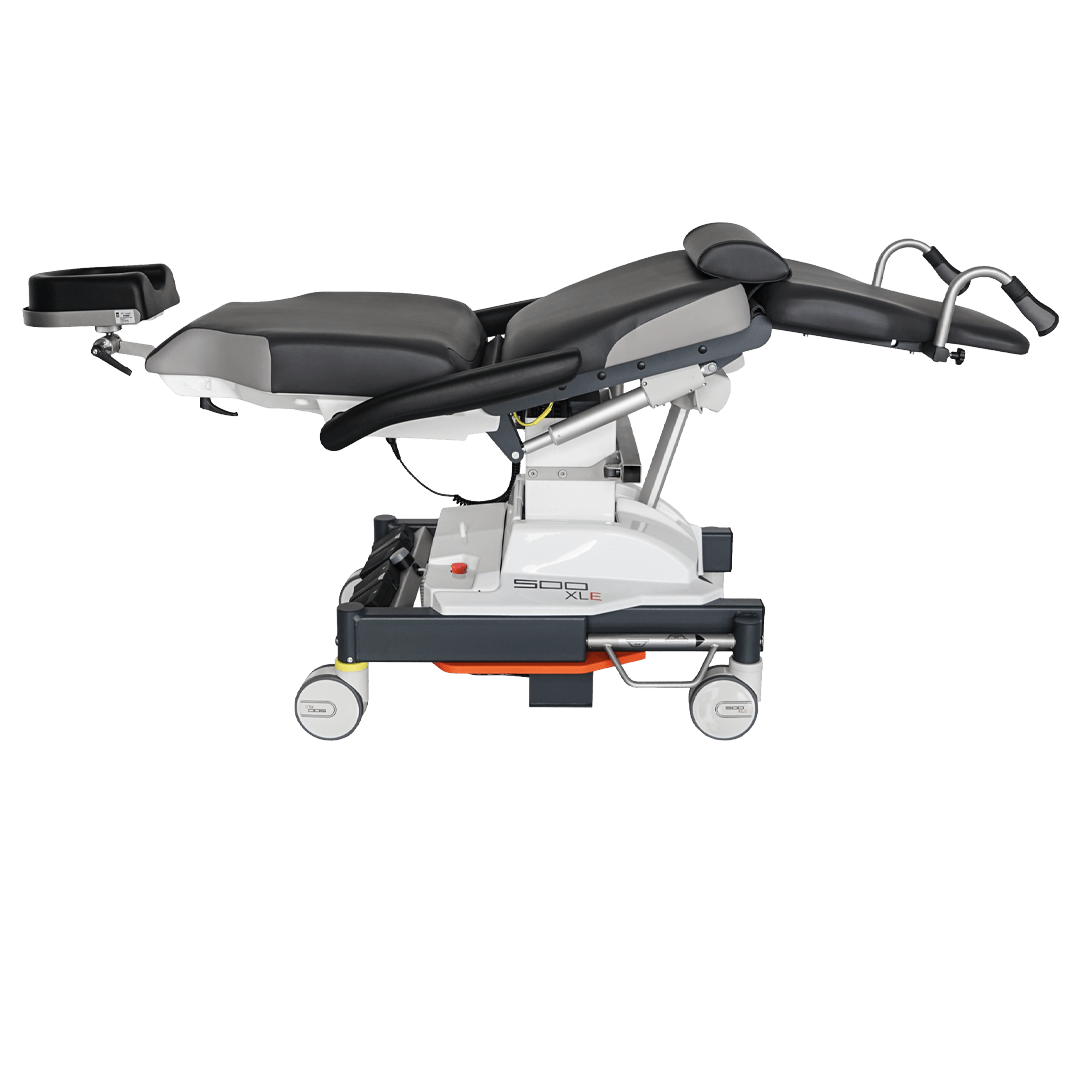

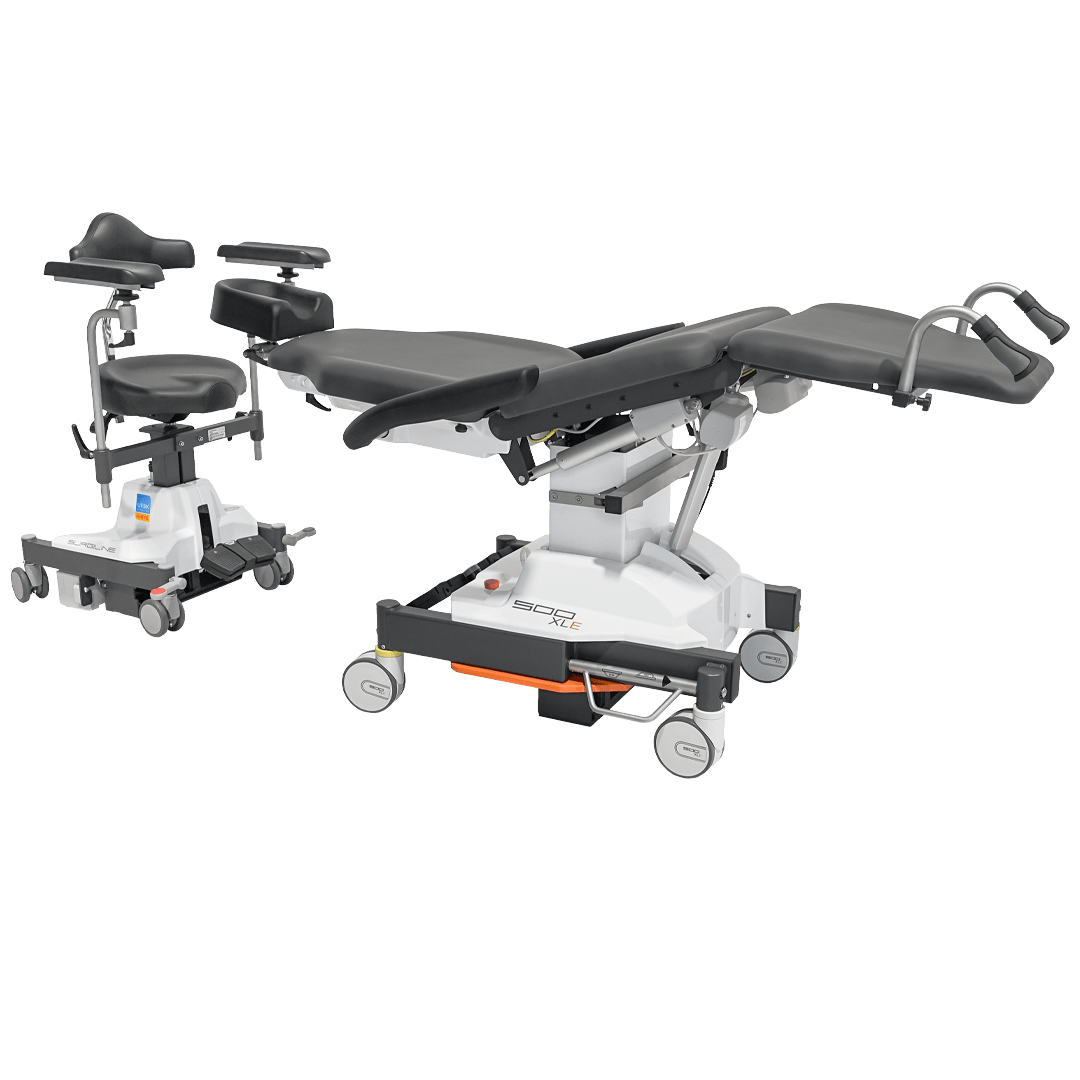

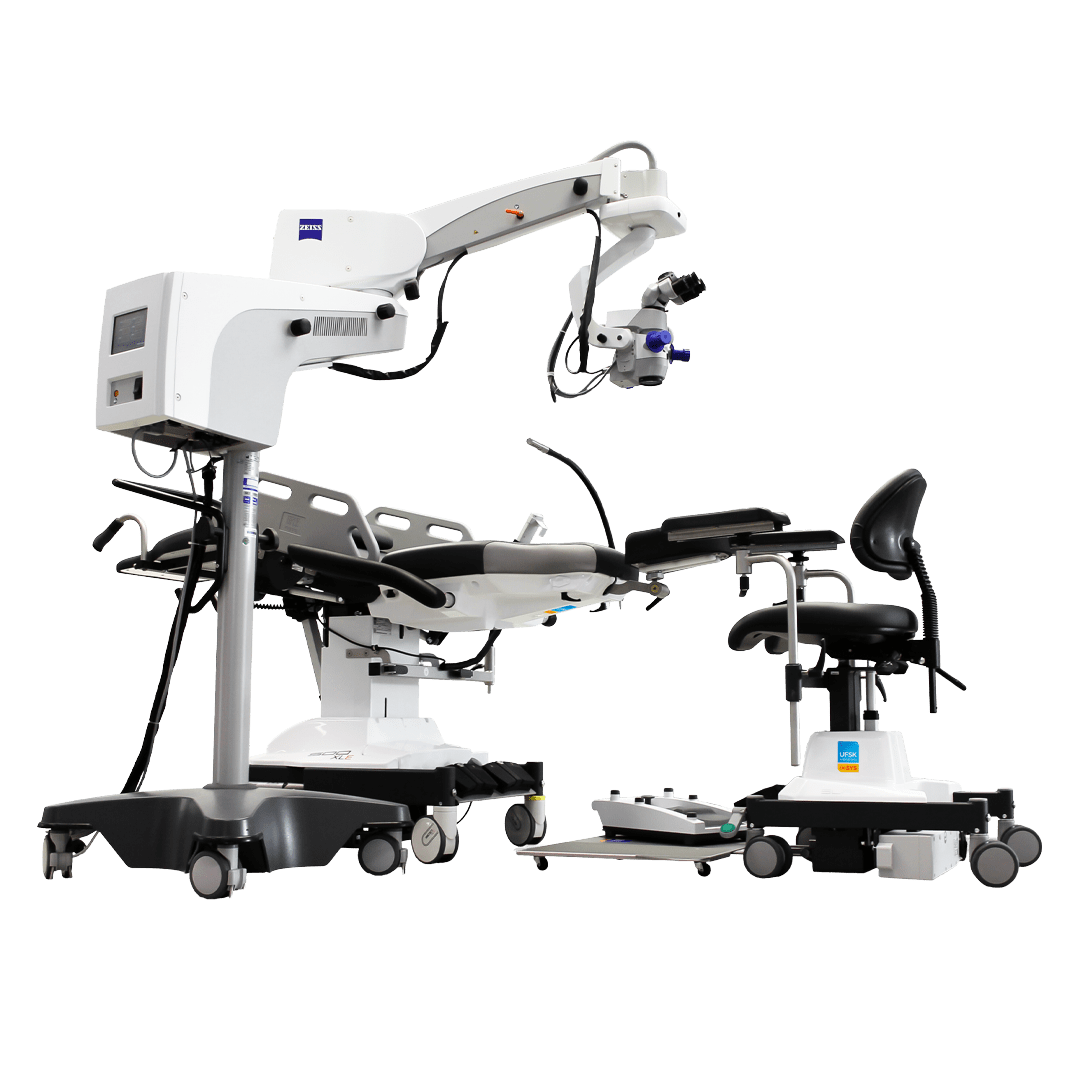

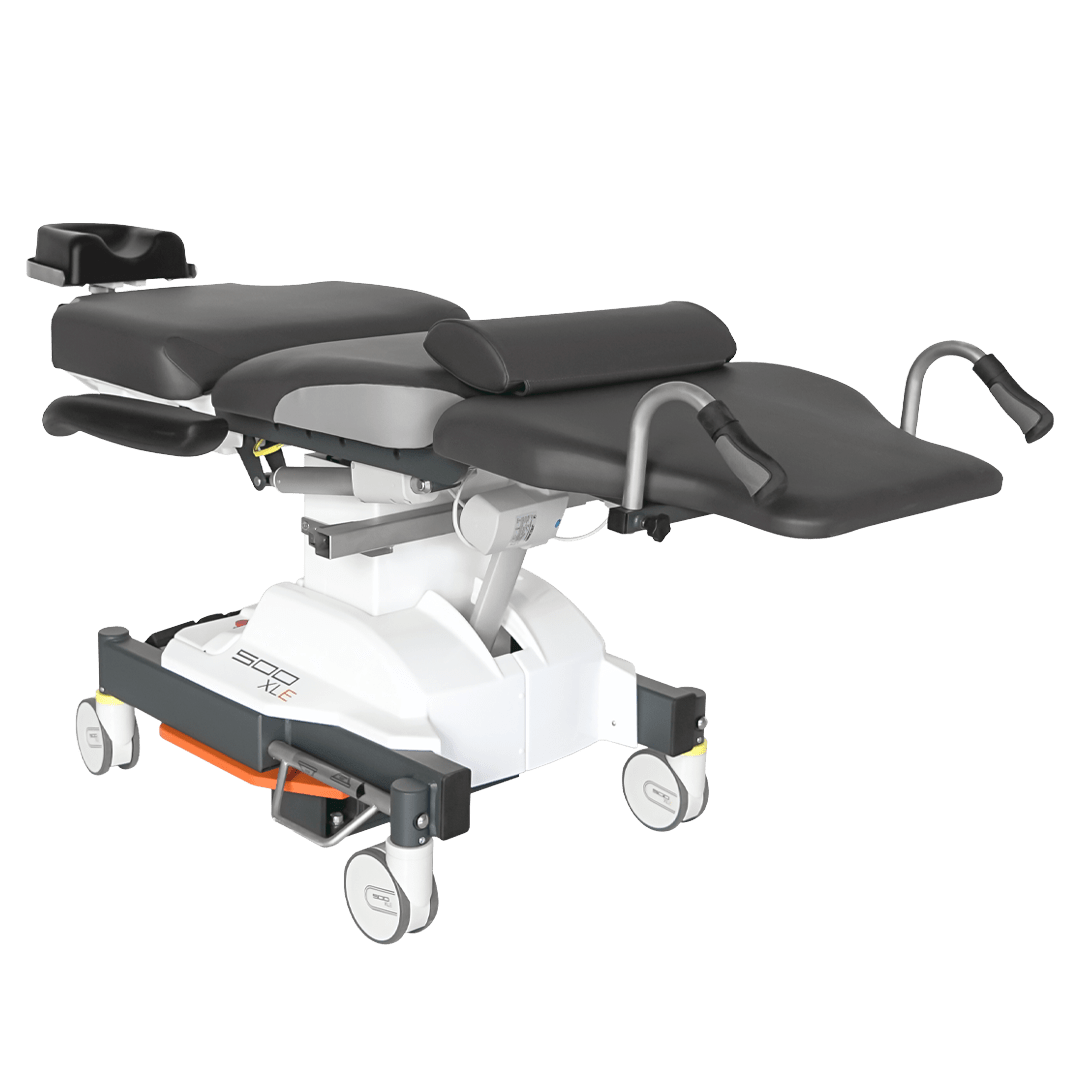

The 500 XLE is a reclining treatment chair designed for rotation systems and continuous use in outpatient operating rooms. Its space-saving construction, battery-powered operation and easy manoeuvrability make it suitable for environments with high patient turnover.

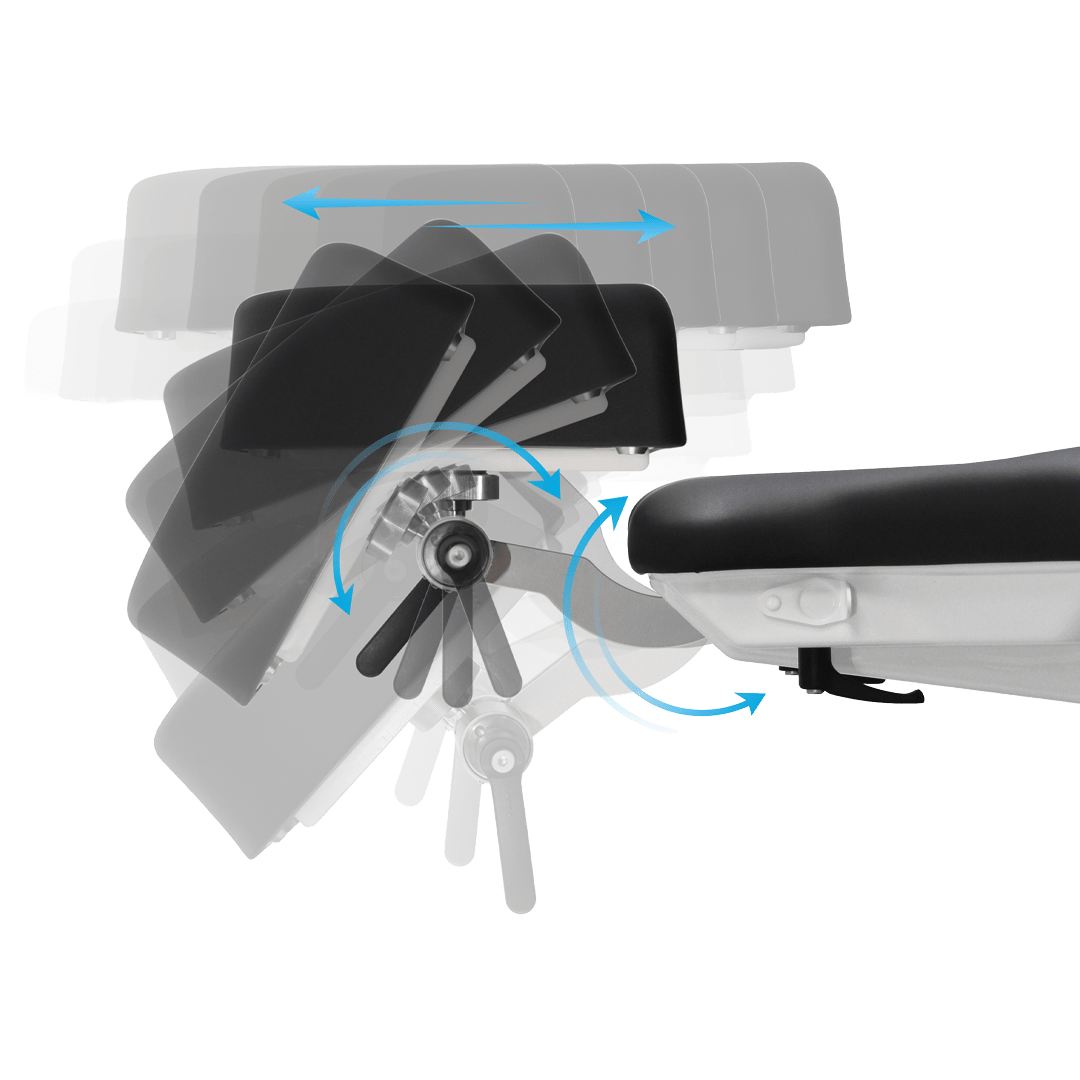

A three-dimensional and longitudinally adjustable headrest with head moulding and neck support assists with safe and accurate patient positioning. The chair provides versatile electronic adjustment of the head, back, seat and leg sections as well as the overall chair height.

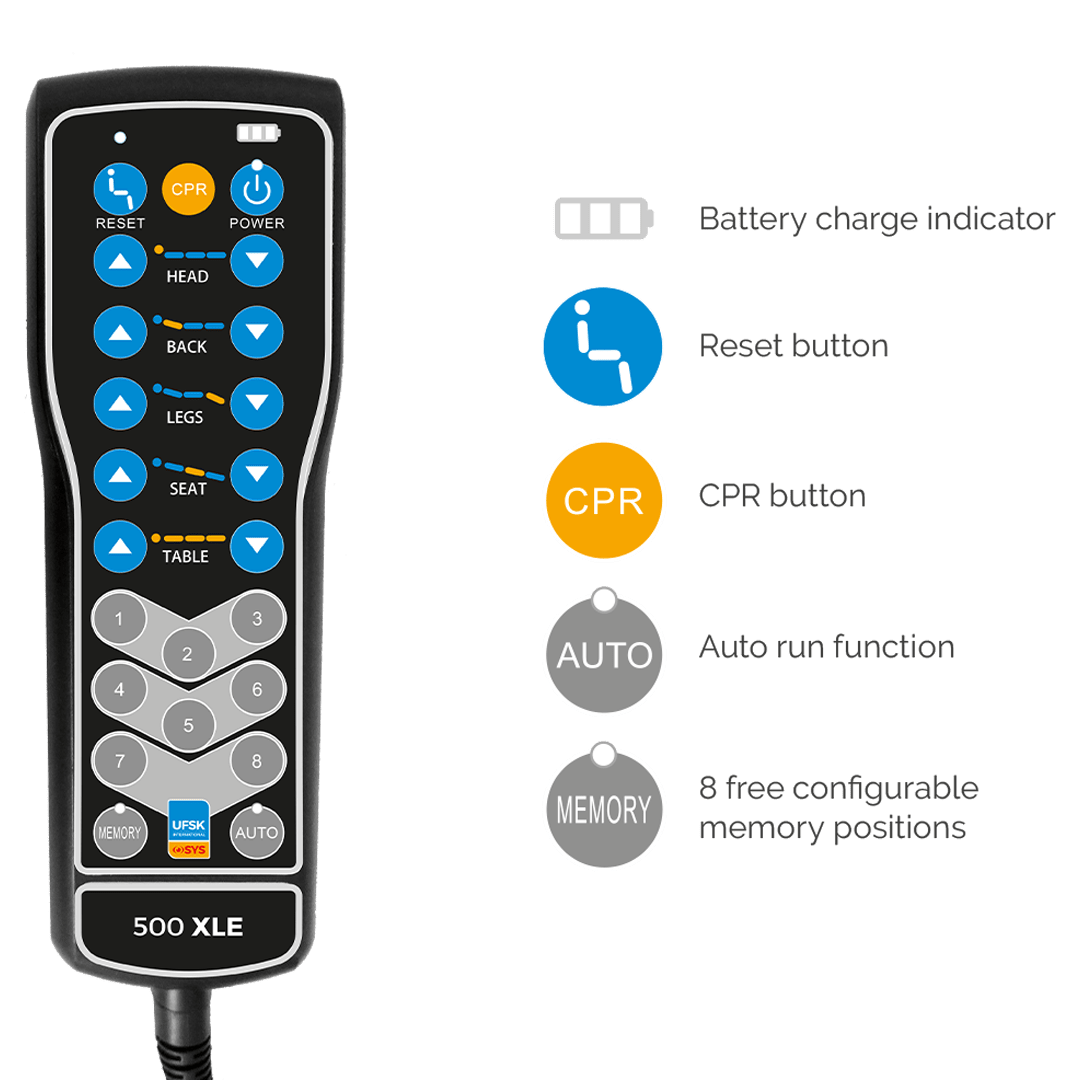

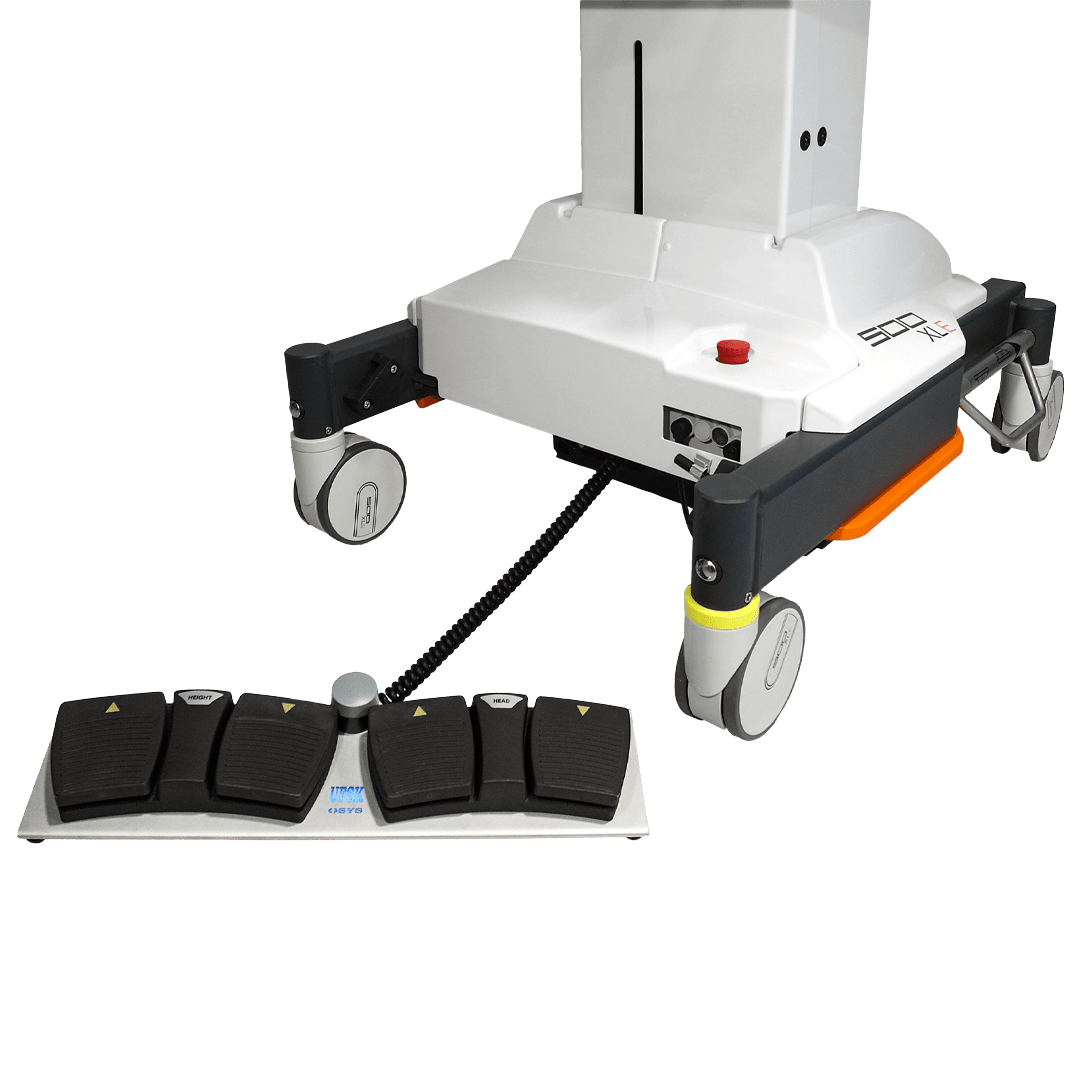

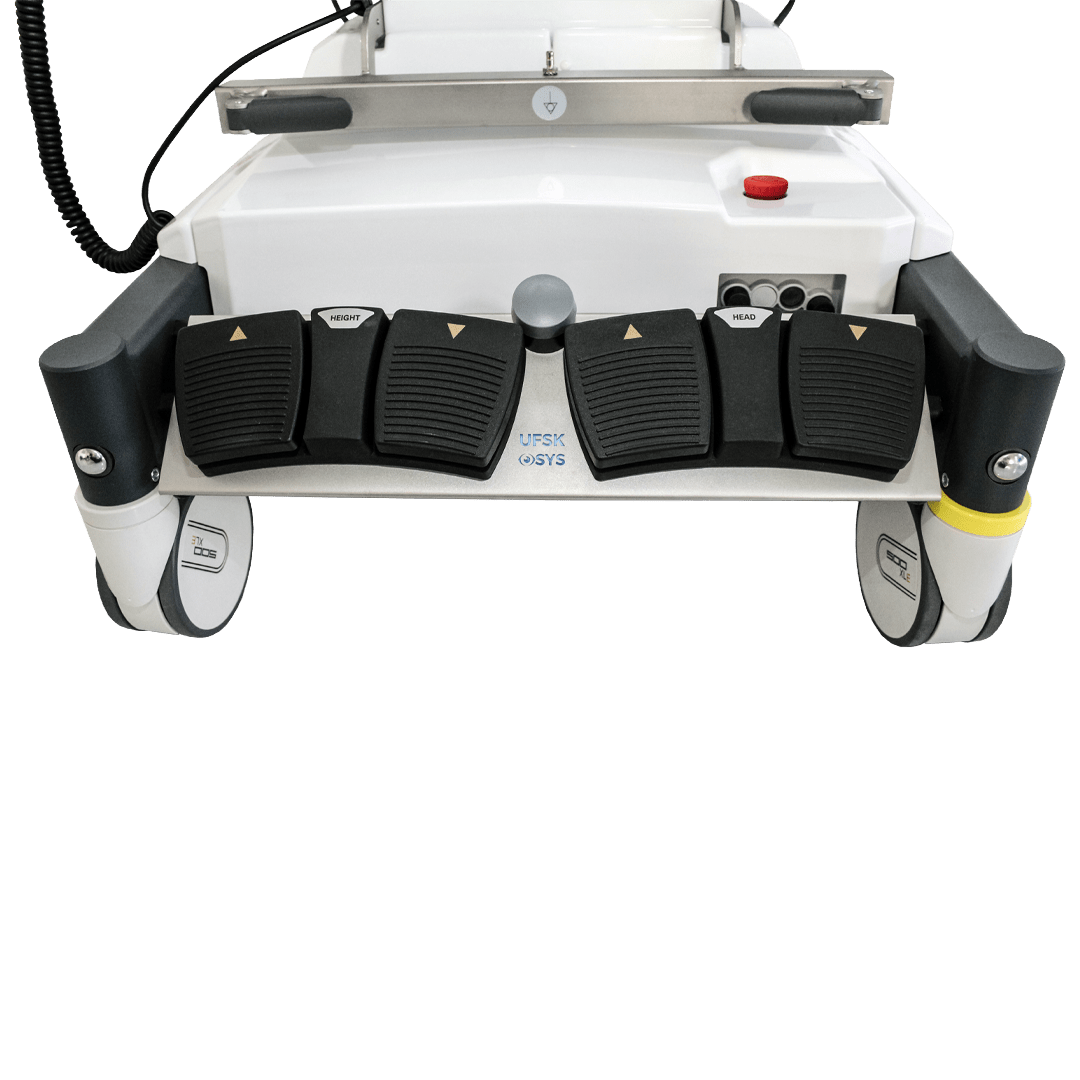

The multifunctional hand control includes eight freely programmable memory positions, a CPR button, reset function, auto-run function and battery-charge indicator. A removable foot keypad allows sterile electronic adjustment of the chair height and head section.
Four fully rotating double castors provide smooth and back-friendly movement. The mechanical Steering-Guide assists with controlled manoeuvring, while brakes operated from either side act on the castors to hold the chair securely in position.
Detachable push handles and hinged, removable armrests make patient entry, exit and transfer easier. The chair is also available with optional Comfort upholstery for longer procedures.
Reviews (0)
About brand
Develops medical equipment including treatment chairs, patient transport systems and specialised healthcare furniture designed for comfort, safety and clinical efficiency.
Technical Specifications
| Product | 500 XLE |
|---|---|
| Product class | performanceLine |
| Frame profile | 90 × 50 mm |
| Outside chassis length | 785 mm |
| Outside width including lever | 720 mm |
| Castors | Ø 125 mm double-rimmed castors |
| Support frame | Four-part support frame: head, back, seat and leg sections |
| Upholstery width | 610 mm |
| Width including armrests | 850 mm |
| Overall length | 1,760–1,900 mm |
| Length with legrest extension | Additional 190 mm |
| Head section | -29°/+35° | 255 × 245 mm |
| Back section | 0°/+83° | 610 × 610 mm |
| Seat section | -5°/+35° | 450 × 610 mm |
| Leg section | 0°/-77° | 510 × 610 mm |
| Armrests | 0°/+180° | 2 × 470 × 75 mm |
| Height adjustment | 625–925 mm |
| Comfort upholstery height adjustment | 655–955 mm |
| Standard entry height | 580 mm |
| Legroom | 520–820 mm |
| Trendelenburg | -12° |
| Reverse Trendelenburg | +5° |
| Maximum lifting range | 300 mm |
| Electrical protection | All components according to IP54 |
| Hand control | Eight programmable memory positions, auto-run and reset functions |
| Battery | 2 × 12 V, 7.2 Ah lead-gel batteries |
| Battery charger input | 100–240 V |
| Battery charger output | 30 V |
| Maximum load | 250 kg |
| Weight | 135 kg |
