Leica Proveo 8
The Leica Proveo 8 ophthalmic microscope combines FusionOptics technology, CoAx 4 coaxial LED illumination and programmable surgical settings for precise anterior and posterior segment procedures.
Description
The Leica Proveo 8 is an advanced ophthalmic surgical microscope designed to support efficient workflows, precise surgical actions and high-quality visualisation during anterior and posterior segment procedures.
Exclusive FusionOptics technology combines high resolution with an increased depth of field, providing detailed, texture-rich images while reducing the need for frequent refocusing. OptiChrome optics deliver high contrast, natural colours and excellent resolution without chromatic aberrations.
The CoAx 4 coaxial LED illumination system generates a clear and stable red reflex while reducing stray light through the sclera. The illumination diameter can be adjusted from 4 to 23 mm using the footswitch, allowing the light field to be adapted to the individual procedure.
CombinationMode allows surgeons to pre-program the light, focus, magnification and other settings required for each phase of a procedure. Up to five surgical phases can be programmed, with individual settings stored for up to 30 surgeons.
The system can be configured with integrated video and recording options and is prepared for the addition of the EnFocus intraoperative OCT system. EnFocus OCT provides real-time visualisation of subsurface ocular tissue and can be integrated into the surgeon’s personalised microscope settings.

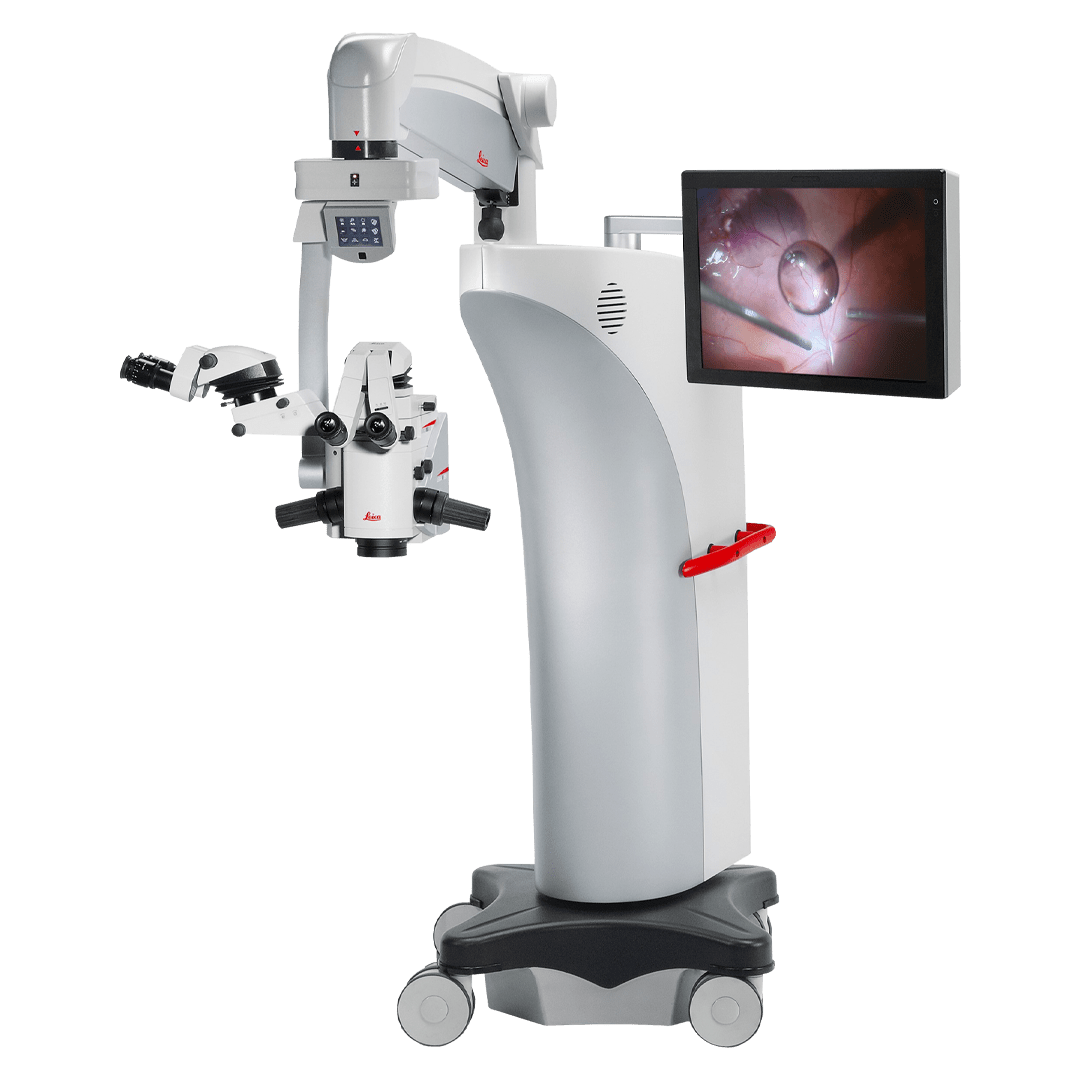

The Proveo 8 is available with a floor stand or ceiling-mounted configuration, providing flexible positioning within the operating room.
Reviews (0)
About brand
Global leader in surgical microscopy and precision optical technologies used across neurosurgery, ophthalmology, pathology and clinical research. Known for high-performance imaging and visualisation systems.
Technical Specifications
| Product | Leica Proveo 8 |
|---|---|
| Application | Ophthalmic surgery |
| Optical technology | FusionOptics and OptiChrome optics |
| Magnification | Motorised 6:1 zoom |
| Total magnification with 10× eyepiece | 4.1×–24.5× |
| Total magnification with 12.5× eyepiece | 5.1×–30.7× |
| Focus range | 75 mm |
| Available working distances | 175 mm, 200 mm or 225 mm |
| Field of view | Ø 51.4–8.6 mm with 10× eyepiece |
| Eyepieces | 8.3×, 10× or 12.5× wide-field eyepieces with ±5 dioptre adjustment |
| Main illumination | Integrated direct LED illumination with two LED lamps |
| Red-reflex illumination | CoAx 4 coaxial LED illumination |
| Coaxial illumination diameter | Adjustable from 4–23 mm using the footswitch |
| Optics rotation | More than 380° |
| Motorised inclination | -15° to +105° |
| XY range | 62 × 62 mm |
| Floor-stand castors | Four Ø 150 mm castors with 360° rotation |
| Floor-stand brakes | Four electromagnetic brakes |
| Monitor arm | 860 mm flexible four-axis arm supporting up to 15 kg |
| Maximum microscope load | 8 kg from the dovetail-ring interface |
| Floor-stand weight | Approximately 345 kg without load or integrated EnFocus OCT |
| Floor-stand weight with EnFocus OCT | Approximately 390 kg |
| CT42 ceiling-mount weight | Approximately 200 kg |
| Power supply | 100–240 V, 50/60 Hz, 600 VA |
| Protection class | Class 1 |
| Optional imaging | Integrated 2D HD video, recording and EnFocus intraoperative OCT |
